Type K 5 Foot Lengths
**Please note when ordering Type K that it is called and ordered by the Nominal I.D.
Please refer to chart below. Example : An order of 1/2" K would yield .625-OD X .049 Wall X Length.
5 FT SECTIONS FOR GROUND SHIPPING (COST IS PER 5 FT SECTION) ( +/- 10% cutting tolerance ) ,

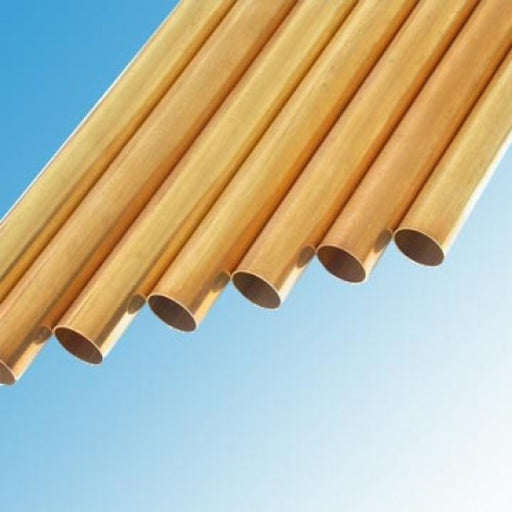

Type K Copper Tubing Coils are manufactured to spec ASTM B88 is the Standard Specification for Seamless Copper Tube , ANSI/NSF Standard 61 Drinking Water System Components.
All of the specifications require a minimum copper plus silver content of 99.9% and phosphorus content between .015 - .040%. As indicated by the
compositional requirements, the copper tube is essentially lead free.
NSF 61 , Alloy C12200
Called by the NOM ID size Type K copper wall thicknesses are thicker than Type L and M and are used for domestic water-, service and distribution-, fire protection-, solar-, fuel and oil-, HVAC-, compressed air-, oxygen-, LPG gas-, snow melting-, steam- and vacuum-systems. Copper tubes of type K copper tubing are typically used with wrot copper fittings. ASTM specifications are B-88.
* Please note that the straight length hard temper copper tubing listed here is called and ordered by the Nominal , ID size. Please reference this size when ordering any copper fittings or plumbing tools.
PSI of Soldered and Brazed Joints
Standard-Tube-Certificate-of-Conformance
Specifications Chart
Data Sheets-Type K,M,L&ACR
Data Sheets-DWV
Tubing Wall Thickness & Weights
-
1/4 Type K Hard Copper 5 FT Length
Original price $7.00 - Original price $7.00Original price $7.00$8.16$8.16 - $8.16Current price $8.16| /Original price $7.00 - Original price $7.00Original price $7.00$8.16$8.16 - $8.16Current price $8.16| / -
3/8 Type K Hard Copper 5 FT Length
Original price $13.00 - Original price $13.00Original price $13.00$15.15$15.15 - $15.15Current price $15.15| /Original price $13.00 - Original price $13.00Original price $13.00$15.15$15.15 - $15.15Current price $15.15| / -
1/2 Type K Hard Copper 5 FT Length
Original price $15.00 - Original price $15.00Original price $15.00$17.49$17.49 - $17.49Current price $17.49| /Original price $15.00 - Original price $15.00Original price $15.00$17.49$17.49 - $17.49Current price $17.49| / -
3/4 Type K Hard Copper 5 FT Length
Original price $28.00 - Original price $28.00Original price $28.00$32.64$32.64 - $32.64Current price $32.64| /Easy To Identify
Original price $28.00 - Original price $28.00Original price $28.00$32.64$32.64 - $32.64Current price $32.64| / -
1 Type K Hard Copper 5 FT Length
Original price $37.00 - Original price $37.00Original price $37.00$43.14$43.14 - $43.14Current price $43.14| /Original price $37.00 - Original price $37.00Original price $37.00$43.14$43.14 - $43.14Current price $43.14| / -
1 1/4 Type K Hard Copper 5 FT Length
Original price $46.00 - Original price $46.00Original price $46.00$53.63$53.63 - $53.63Current price $53.63| /Original price $46.00 - Original price $46.00Original price $46.00$53.63$53.63 - $53.63Current price $53.63| / -
1 1/2 Type K Hard Copper 5 FT Length
Original price $59.00 - Original price $59.00Original price $59.00$68.79$68.79 - $68.79Current price $68.79| /Original price $59.00 - Original price $59.00Original price $59.00$68.79$68.79 - $68.79Current price $68.79| / -
2 Type K Hard Copper 5 FT Length
Original price $89.00 - Original price $89.00Original price $89.00$103.77$103.77 - $103.77Current price $103.77| /Original price $89.00 - Original price $89.00Original price $89.00$103.77$103.77 - $103.77Current price $103.77| / -
2 1/2 Type K Hard Copper 5 FT Length
Original price $133.00 - Original price $133.00Original price $133.00$155.07$155.07 - $155.07Current price $155.07| /Original price $133.00 - Original price $133.00Original price $133.00$155.07$155.07 - $155.07Current price $155.07| / -
3 Type K Hard Copper 5 FT Length
Original price $184.00 - Original price $184.00Original price $184.00$214.54$214.54 - $214.54Current price $214.54| /Original price $184.00 - Original price $184.00Original price $184.00$214.54$214.54 - $214.54Current price $214.54| / -
4 Type K Hard Copper 5 FT Length
Original price $321.00 - Original price $321.00Original price $321.00$374.28$374.28 - $374.28Current price $374.28| /Original price $321.00 - Original price $321.00Original price $321.00$374.28$374.28 - $374.28Current price $374.28| /
